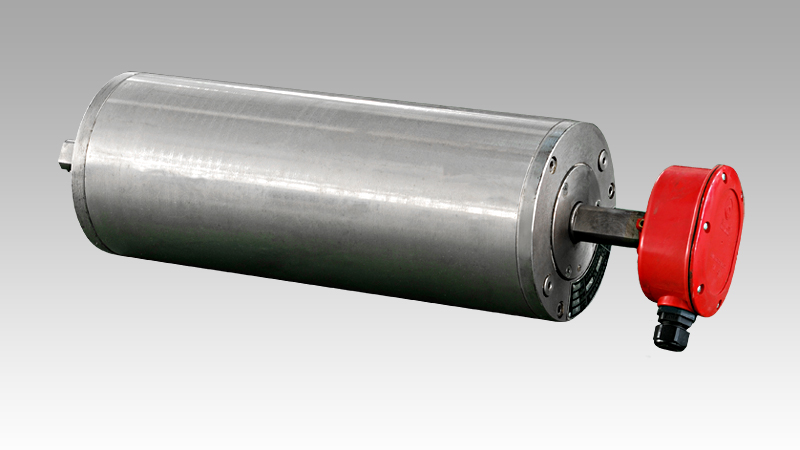

YD型油浸式電滾筒

YD型油浸式電滾筒

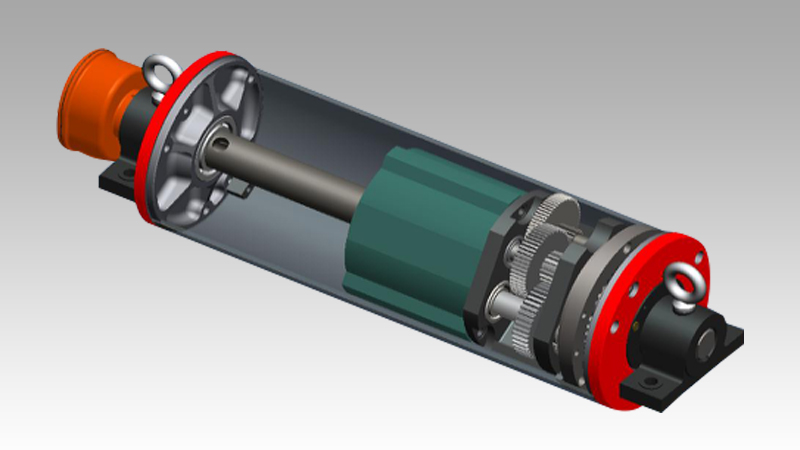

YD 型油浸式電滾筒是國內先進的電滾筒。該產品電機采用油浸直接冷卻,效率高、體積小,與國內同類產品相比,具有重量輕、噪聲低、壽命長等優點,已廣泛用于電子、食品、郵電、輕工、機場、港口等行業的自動流水線或物料輸送線。

產品詳情

YD型油浸式電滾筒參數表

Parameter List

滾筒直徑D

功率P kw

滾筒表面線速度V m/s

極限最
小筒長
mm

系列最小 筒長

50mm質量

mm

長度mm

質呈kg



Φ110

o.i2 (nm)

0.14,0.16,0.20,0.25,0.57,0.63,0.80

310

350

12

0.8

0.25

0.04,0.047,0.05,0.055,0.06,0.065,0.07,0.075,0.08,0.09,0.10,0.12,0.152,0.20

350

350

16

1.1

0.25,0.30,0.32,0.34,0.38,0.44,0.53

320

Φ130

0.25

0.046,0.056,0.065,0.07,0.08,0.10,0.13,0.15,0.18,0.226

350

350

17

1.5

0.29,0.35,0.40,0.45,0.52,0.63

320

0.55

0.046,0.056,0.058,0.068,0.071,0.08,0.09,0.10,0.12,0.14,0.15,0.18,0.226

400

400

19

1.5

0.29,0.35,0.40,0.45,0.52,0.63

370

Φ174

0.75

0.03,0.04,0.05,0.063,0.08,0.10,0.13,0.16,0.20

470

500

50

1.8

0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00

400

400

40

Φ216

0.75

0.05,0.063,0.08,0.10,0.13,0.16,0.20,0.25

470

500

70

2.5

0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50

400

400

60

1.1

0.13,0.16,0.20,0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50

410

450

63

1.5/2.2

0.13.0.16.0.20.0.25.0.32.0.40,0.50.0.63.0.80,1.00,1.25.1.60.2.00.2.50

460

500

69

3

0.13,0.16,0.20,0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50

510

550

73

Φ240

0.75

0.056,0.07,0.089,0.11,0.14,0.18,0.22,0.28,0.36

470

500

80

2.8

0.44,0.56,0.70,0.89,1.11,1.39,1.78,2.22,2.78

400

400

70

1.1

0.14,0.18,0.2,0.25,0.4,0.5,0.56,0.63,0.8,1.0,1.25,1.6,2.0,2.5

410

450

70

1.5/2.2

0.14,0.18,0.2,0.25,0.4,0.5,0.56,0.63,0.8,1.0,1.25,1.6,2.0,2.5

460

500

78

3

0.14,0.18,0.2,0.25,0.4,0.5,0.56,0.63,0.8,1.0,1.25,1.6,2.0,2.5

510

550

81

Φ320

1.1

0.13,0.16,0.20,0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50

420

450

120

3.2

1.5/2.2

0.13,0.16,0.20,0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50

470

500

126

3

0.13,0.16,0.20,0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50

520

550

132

4

0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50,3.15

560

600

150

5.5

0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50,3.15

560

600

155

7.5

0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50,.3.15

660

700

160

Φ400

1.1

0.16,0.20,0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50

420

450

140

5.0

1.5/2.2

0.16,0.20,0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50

470

500

145

3

0.16,0.20,0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50

520

550

152

4

0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50,3.15,4.00

560

600

170

5.5

0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50,3.15,4.00

560

600

175

7.5

0.63,0.80,1.00,1.25,1.60,2.00,2.50,3.15,4.00

660

700

190

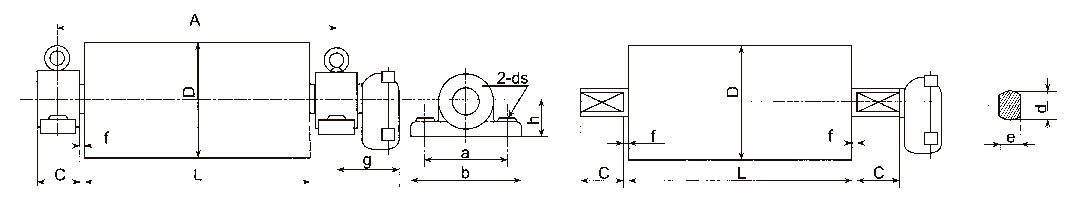

YD型油浸式電滾筒安裝外形尺寸

Mounting External Size


說明:安裝中心距A=L+2f+C。帶支座時,A為兩支座中心距離;不帶支座時,A為兩端軸銑扁的中心距離。

Notes: Mounting canter distance A=L+2f+C.In case the motorized drum has bracket,A is the distance between two bracket canter.In case it has no bracket,A is the distance between two symmetrical mounting tenons canter, which are both shaft ends.

D

a

b

c

d

e

f

g

h

ds

0 110

-

-

20

25

21

5

-

-

-

0 130

-

-

20

25

21

5

-

-

-

0 174

120

160

60

32

25

5

125

50

15

0 216

120

160

60

38

30

5

125

50

15

0 240

120

160

60

38

30

5

125

50

15

0 320

210

260

60

42

35

10

142

95

19

0 400

210

260

60

42

35

10

142

95

19



備注:0.75kW的0216、0240滾筒的安裝尺寸與0174滾筒的安裝尺寸相同

Notes'' The mounting size of the motorized drum which power is 0.75kW,drum diameter is 216mm or 240mm is the same as the mounting size of the motorized drum which drum diameter is 174mm.

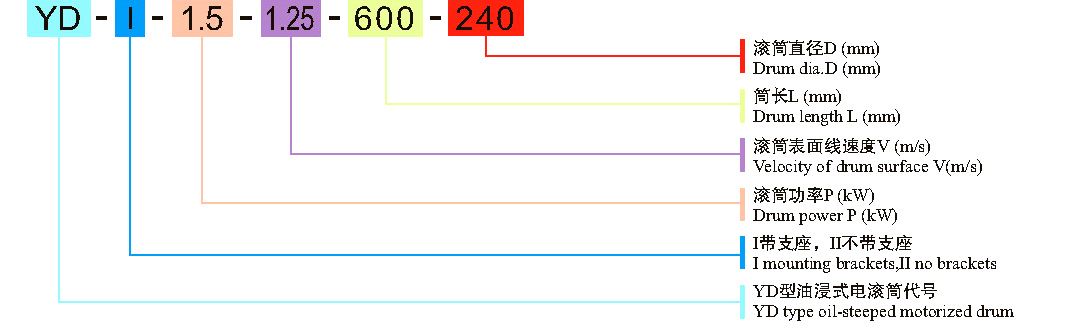

YD型油浸式電滾筒訂貨代號

Ordel Symbol
